Owner: Kolja Frisch

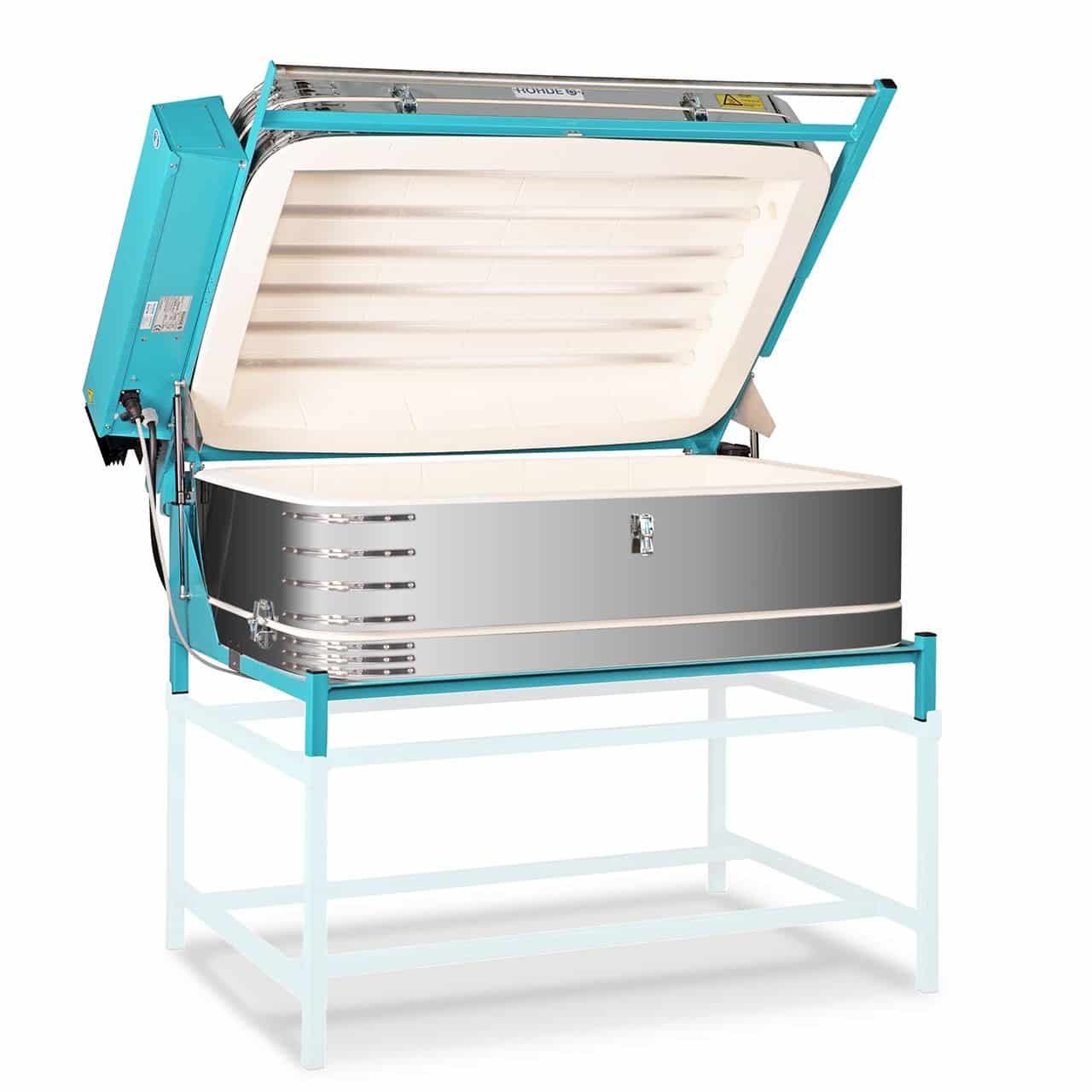

Rohde Fusing Kiln 230/400V-CEE 16A – 11 KW incl. controller ST411
Int. dimensions 1020 x 660 x 320 mm
Ext. dimensions 1350 x 1100 x 630 mm
Tmax.= 950°C-3/N/PE 230/400 V, 50 HZ, 16 A – 11 KW
Wired controller Stafford ST 411
The internal height is calculated from the tub height of 22.5cm plus the lid height of 11cm minus 3cm for the heating tubes.

Kiln:
– Insulation structure made of lightweight firebricks, free of ceramic fibres
– High-quality infrared radiators
– Low external temperatures at maximum temperature 950°C
– Power control effected by silent, low-wear solid-state relays with external cooling element
– Lid easy-to-open supported by gas pressure springs

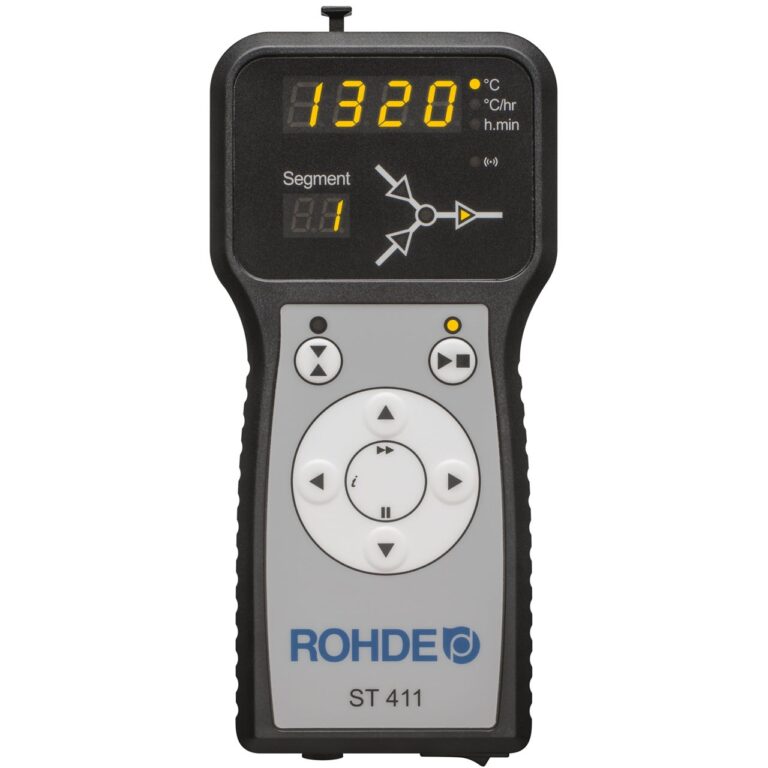

Controller:
Control system with USB interface including USB stick
– 1-zone control
– 32 firing programs with 32 firing segments each
– 1 regulated heating / cooling ramp and holding time per
segment
– Hold times up to 99:59 h
– Heating rates between 1 and 999 ° C / h or “FULL”
– USB interface for data logging
– CPC14 plug connection, assignment: ROHDE standard
– WiFi module for connection to the ROHDEapp
– 1x freely programmable switching output
